Top Load Parts Washer

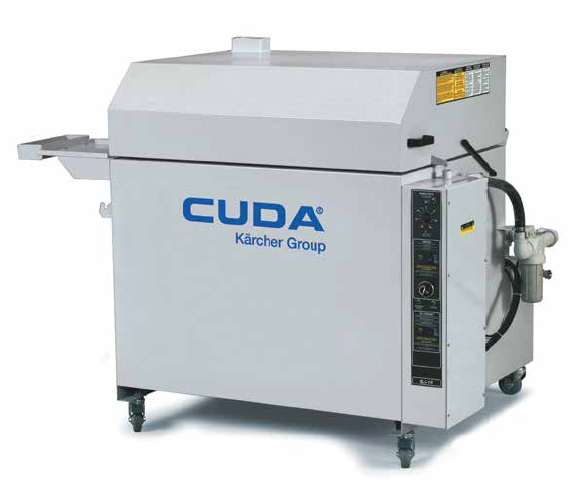

CUDA SJ Series

The newest addition to the Cuda top load line-up, the SJ-15 uses a patented spray wash  technology which eliminates the need for a drive motor, gears and pulleys. Using a water-propelled spray arm with 23 nozzles that spin around a stationary parts basket, parts are hit from every angle while being cleaned. It has a 350-lb. load capacity, and a basket dimension of 32″ x 21″, 90 gallon sump capacity, 3 HP pump motor delivering 37 GPM @ 30 PSI.


  • Vertical / Seal-less Pump: 3 HP / 50 GPM / 45 PSI

  • 350 Lbs. Load Capacity, determined with even weight distribution

  • 90 Gal. Sump Capacity

  • 6 kW Heater

  • Automatic Oil Skimmer

  • Low Water Shutdown
